Description
Single battery care & recharge

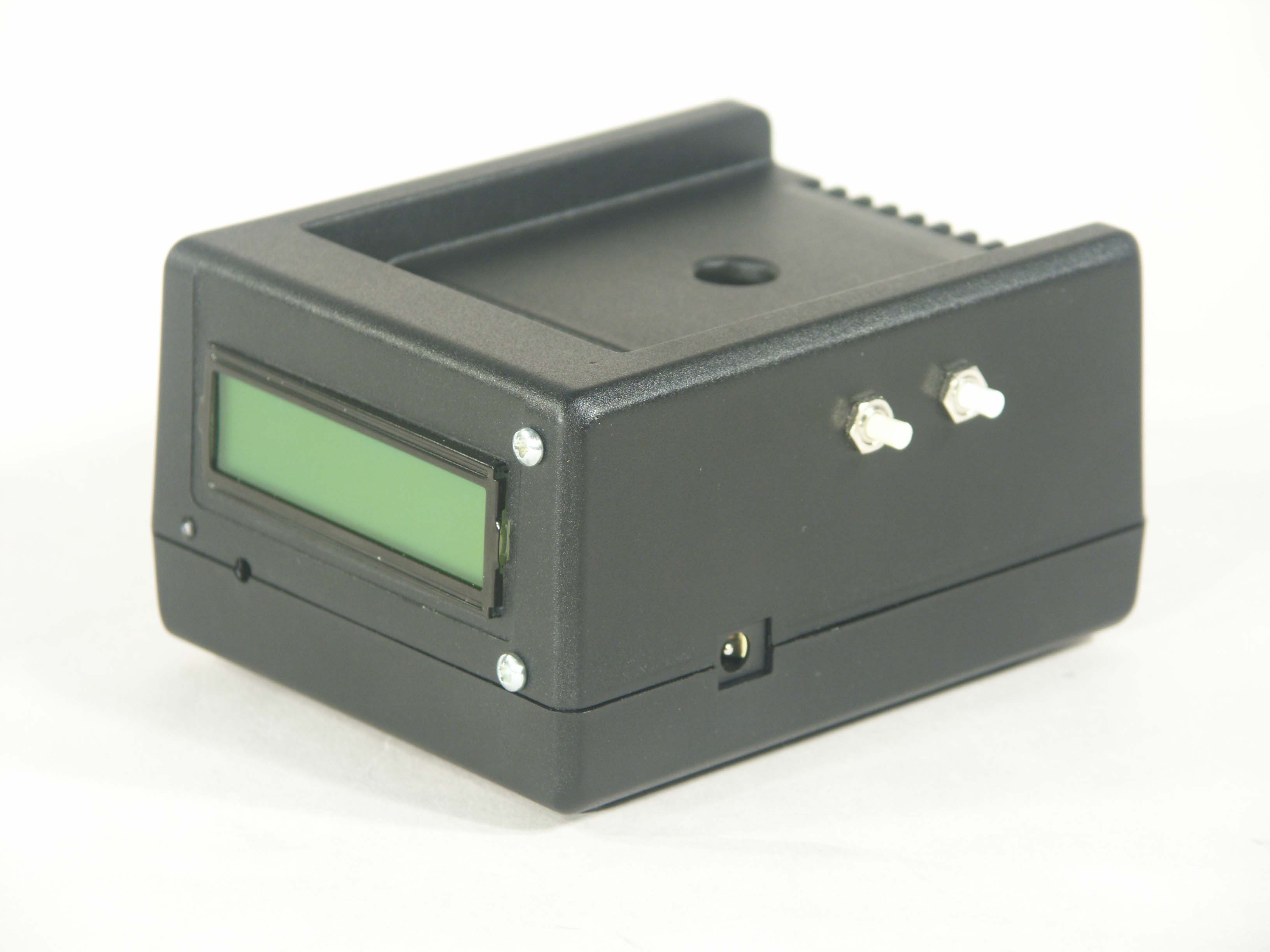

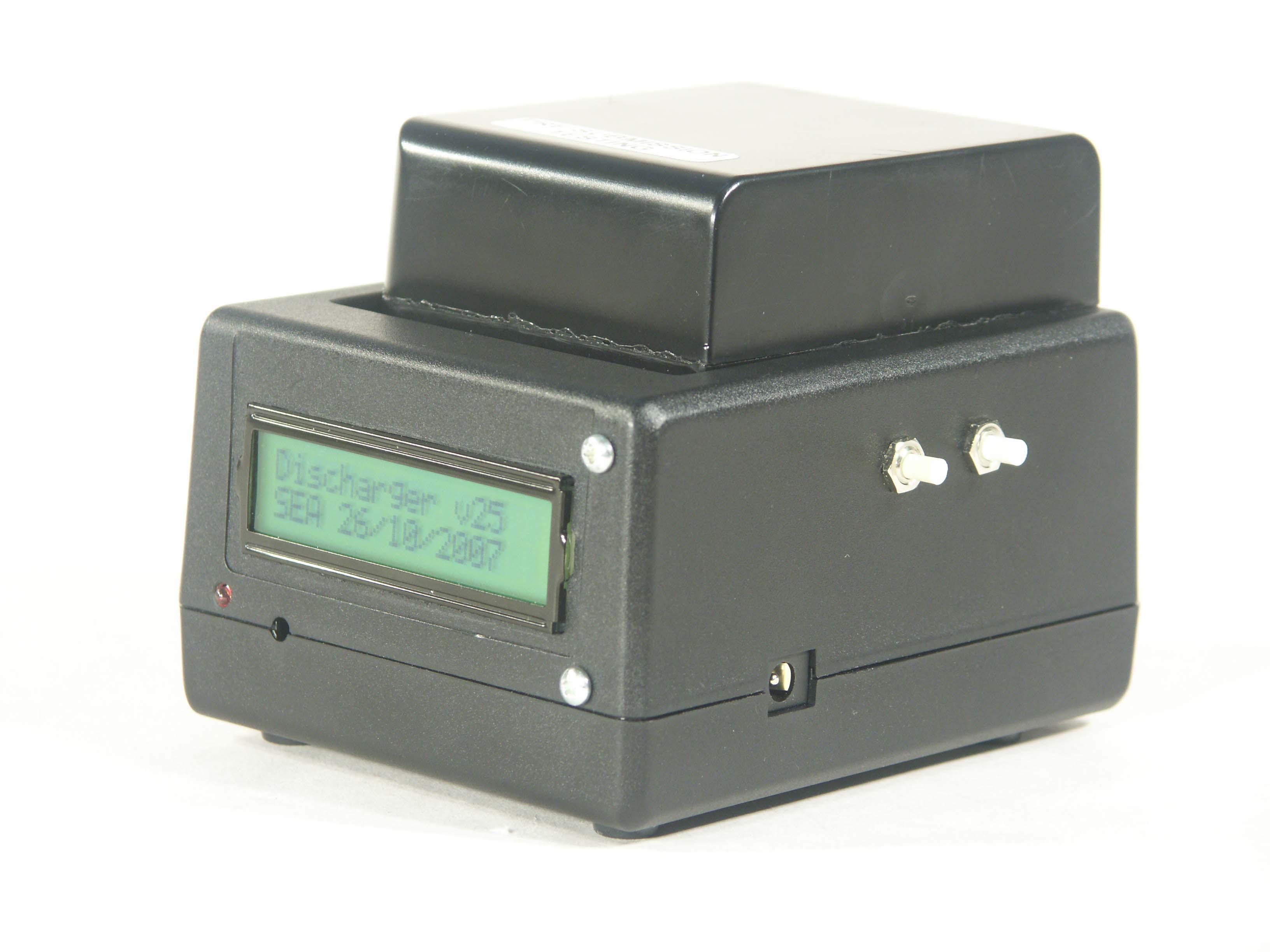

The BC4 single battery analyser makes it possible not only to recharge batteries used in the SEshield respirators, but also to ascertain the current status of the battery, as well as maintaining the battery in peak condition over long periods of time. Essentially, a battery can be placed in the analyser and left there until the time comes to use it. However, the unit can also provide additional information about the ‘health’ of the battery, so the user can determine the battery’s ability to power the respirator.
Data Sheet
Analyses, conditions and recharges single batteries
- Usage: The BC4 single battery analyser makes it possible not only to recharge batteries used in the SE4 family of respirators, but also to ascertain the current status of the battery, as well as maintaining the battery in peak condition over long periods of time.

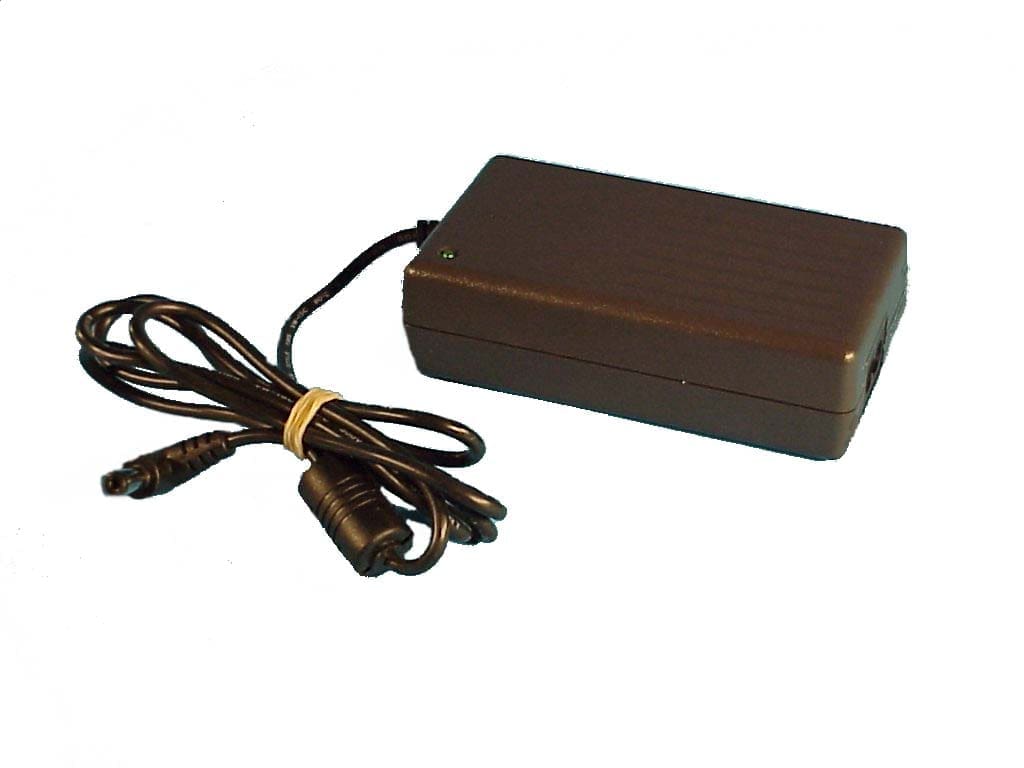

- AC power supply: 100 to 240 V, 50 to 60 Hz
- DC power (charging mode, max): 21 V, 2.5 A
- Charging current: 2 A
- Post-trickle charging current: 0.2 A
- Pre-trickle recovery current: 0.75 A
- Max critical battery temperature: +61°C
- Max critical PCB temperature: +95°C
- Max allowed charging start temperature: +32°C
- Min allowed charging start temperature: +5°C
- Post-trickle charging duration
- Charged battery (charging cycle <20 min): 30 min
- Discharged battery (charging cycle >20 min): 180 min
- Resistance PASS
- Charging: <600 mohm
- Discharging: <800 mohm
- Resistance FAIL critical (charging): >800 mohm
- Max allowed voltage during charging: 17 V
- Min allowed voltage during charging: 8 V
- Discharge level: 10.5 V
- Discharge current: 1 A
- Emergency cut-off current
- Instantaneous (charging state): 3 A
- Exceeding set current for more than 8 s: 200 mA
- Pre-programmed charging / discharging cycles: 1 to 5
