spiroCART Cylinder trolley


spiroCART Cylinder trolley

Wheel your air around

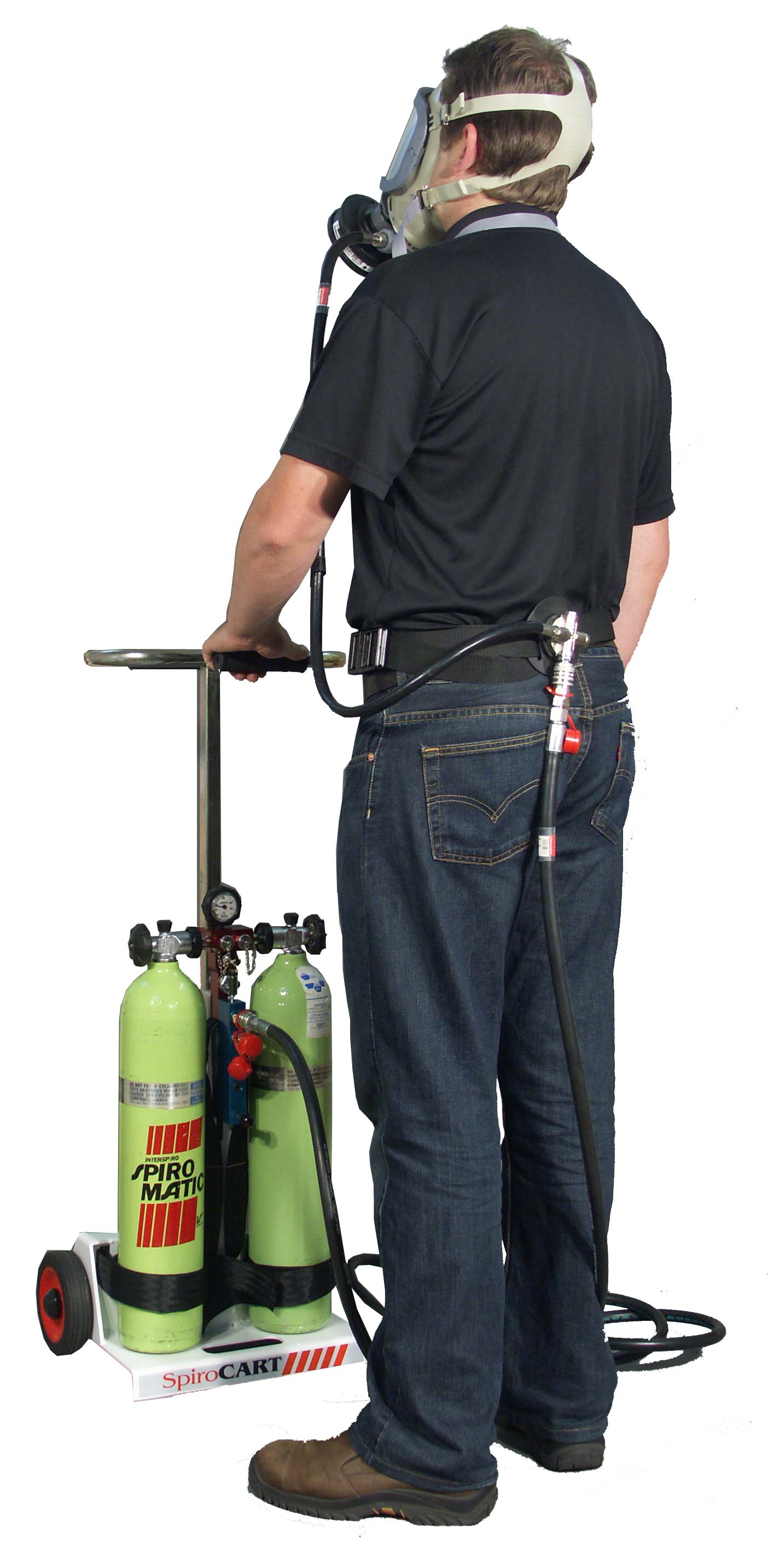

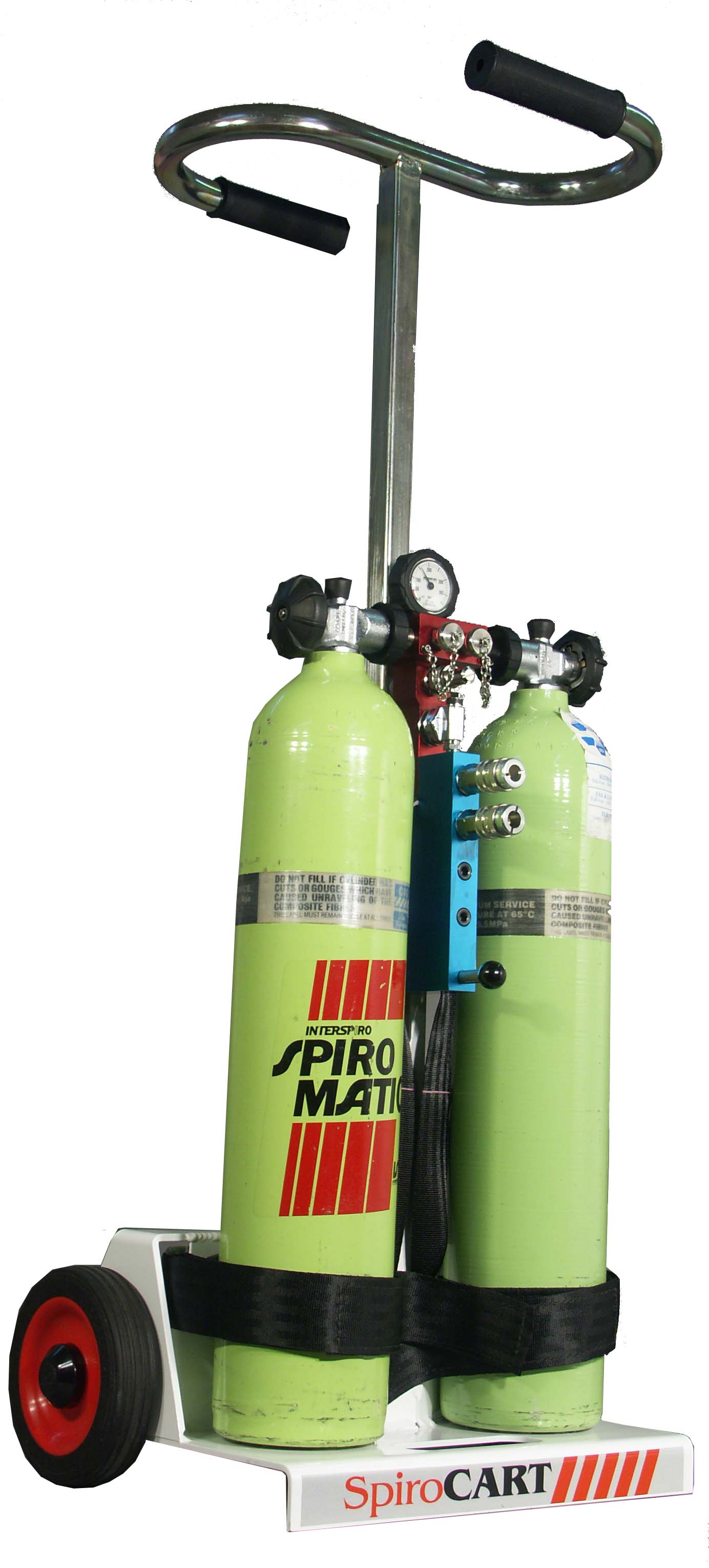

SpiroCART is a BA backpack on wheels. Instead of wearing your cylinders on your back, or dragging cumbersome hoses from a remote air source, why not put your cylinders on a light-weight, highly mobile trolley? With SpiroCART, you can work continuously for as long as you like, since full and empty cylinders can be rotated without interruption to the air supply. SpiroCART accepts a variety of cylinder sizes from a single 3-litre to twin 9-litre bottles.


  • Can be pushed or pulled
  • Extendable handle
  • Can be fitted with optional hose wheel for situations where the user needs to work a distance away from the cart
  • Hot-swapping: as soon as one cylinder is empty, the warning whistle sounds, and you switch over to the second cylinder and replace the empty one without any break in the air supply
  • See separate page for manifold details

Data Sheet

For transportation of air cylinders

Download PDF

  • Description: Portable compressed-air breathing supply for airline respirators
  • Manifold/regulator: See separate manifold datasheet
  • Air supply
    • One or two cylinders
    • Supply pressure: 300 bar or 163 bar (G-size cylinders)
  • Approved cylinder types
    • BOC 300 bar 4 litre composite
    • EFIC 300 bar 0.8 litre composite
    • Spiromatic 300 bar 4 litre steel
    • Spiromatic 300 bar 6 litre steel
    • G-size (wall-mounted version only)
  • Cylinder changing: The manifold continues to deliver air from one cylinder while the other cylinder is being changed
  • Air outlets: Two CEJN airline connectors standard. A third outlet is optional
  • Outlet pressure: 7 to 10.5 bar
  • Hose reel: spiroCART is available with an optional hose reel and 25 metres of 9.5 mm rubber airline
  • Handle: Collapsible/expandable handle, locks in up and down positions
  • Alternative configurations
    • Wall-mounted manifold/regulator with flexible connections to suit G-size cylinders
    • With carry handle for fully portable use (single cylinder only)
  • Construction
    • Welded aluminium frame
    • Welded steel handle
  • Weight:
    • spiroCART without cylinders: 8 kg
    • spiroCART with hose reel and 25 m hose: 17 kg
  • Height
    • Handle down: 720 mm
    • Handle up: 990 mm
