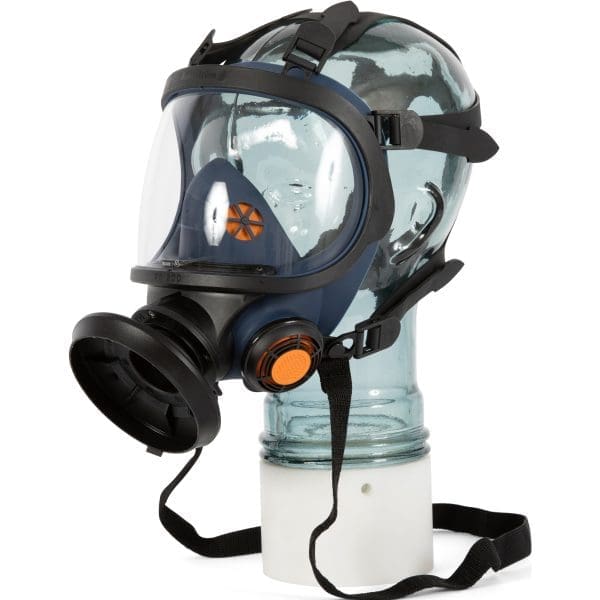

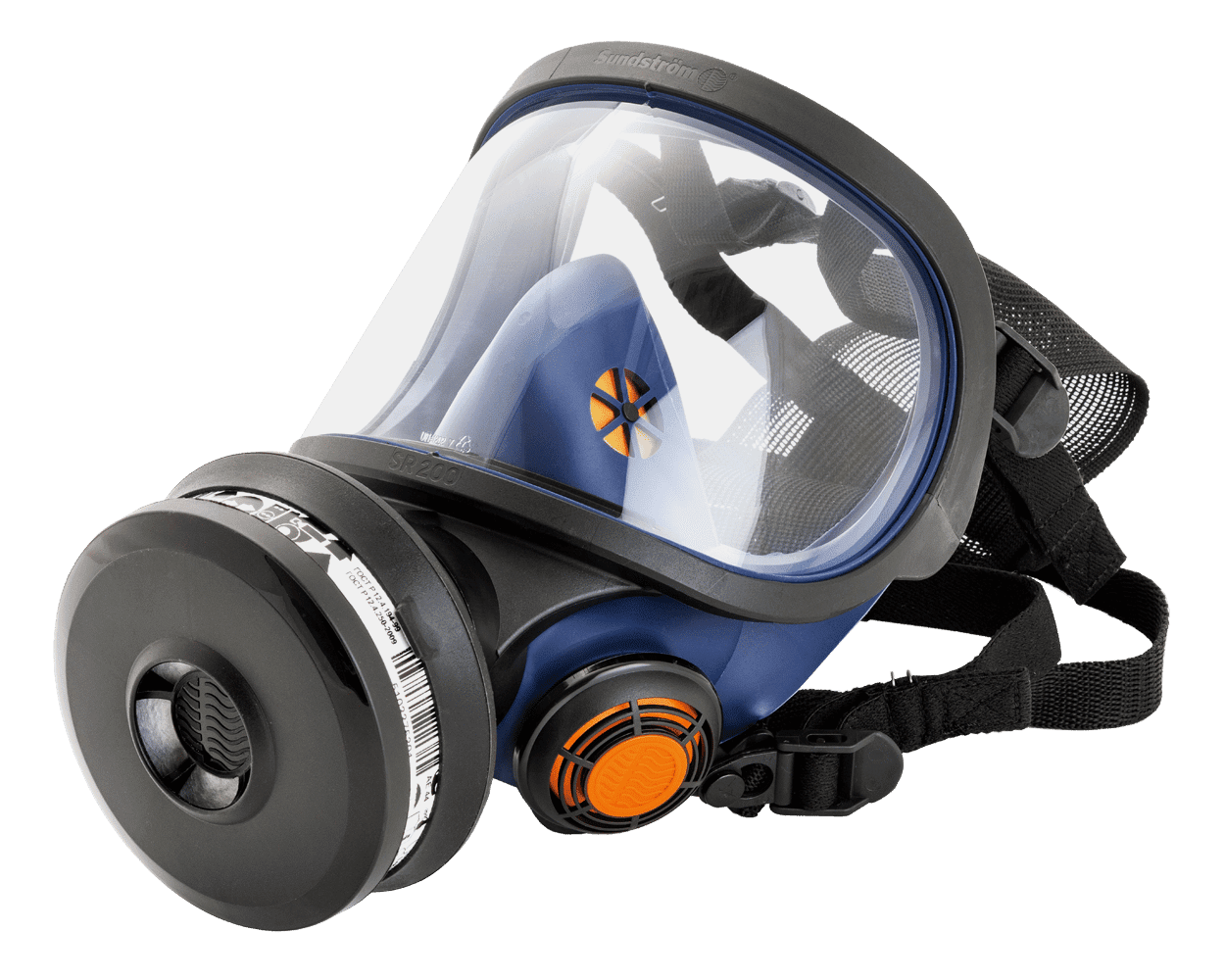

Sundström SR200 full face respirator


Silicone facepiece

Heavy duty use, full time exposure, long term work in areas requiring very high protection levels

The Sundström SR200 full face respirator provides very high protection at heavy-duty work for extended periods. The respirator offers added eye and face protection, and a higher protection factor than half masks. Use with filters, supplied air, or Sundström PAPR.


  • Very high protection factor (NPF 2000)
  • Two exhalation valves
  • Valve caps with air diffusion (no clogging during spray jobs)
  • Low weight
  • Fabric head harness – no sticking rubber
  • Unique curved visor for exceptionally wide and deep field of vision
  • Part of inhalation air is channelled across the visor to minimise mist forming
  • Can easily be fitted with optional SmallTalk microphone and loudspeaker
  • Accepts all Sundström filters and compressed air attachments, as well as PAPR
  • Silicone mask (low allergenic, superior facial seal)

Data Sheet

Full face negative-pressure respirator

Download PDF

  • Description: Full face respirator for use with filters or supplied air
  • Material: Silicone rubber
  • Usage: Heavy-duty use, full-time exposure, long-term work in areas requiring very high protection levels
  • Air circulation inside mask
    • 2/3 of inhalation air reaches mouth and nose without circulating visor and outer mask
    • 1/3 of inhalation air passes across the visor and prevents fogging
  • Weight: 450 g approx.
  • Membranes
    • Inhalation: Single silicone membrane
    • Exhalation: Twin silicone membranes. The position and construction of the two exhalation membranes make voice communication easy
  • Head harness: Elastic bands and a mesh head cradle for optimum comfort. The harness has to be adjusted only oncce for a user, after which the mask can be put on in a simple two-hand movement
  • Filter attachment: Accepts all Sundström filters + compressed-air attachments. Filter seat is pointed downwards for good balance and great field of vision
  • Breathing resistance:
    • Inhalation: approx. 10 Pa at 30 l/min (EN standards requirement: <50 Pa)
    • Exhalation: approx. 56 Pa at 160 l/min (EN standards requirement: <300 Pa)
  • Visor: Scratch-resistant polycarbonate (standard). The visor is curved spherically, which means that the face fits ‘into’ the visor, ensuring a very wide field of vision and a minimum of reflections
