Data Sheet

Gas & particles PAPR

Download PDF

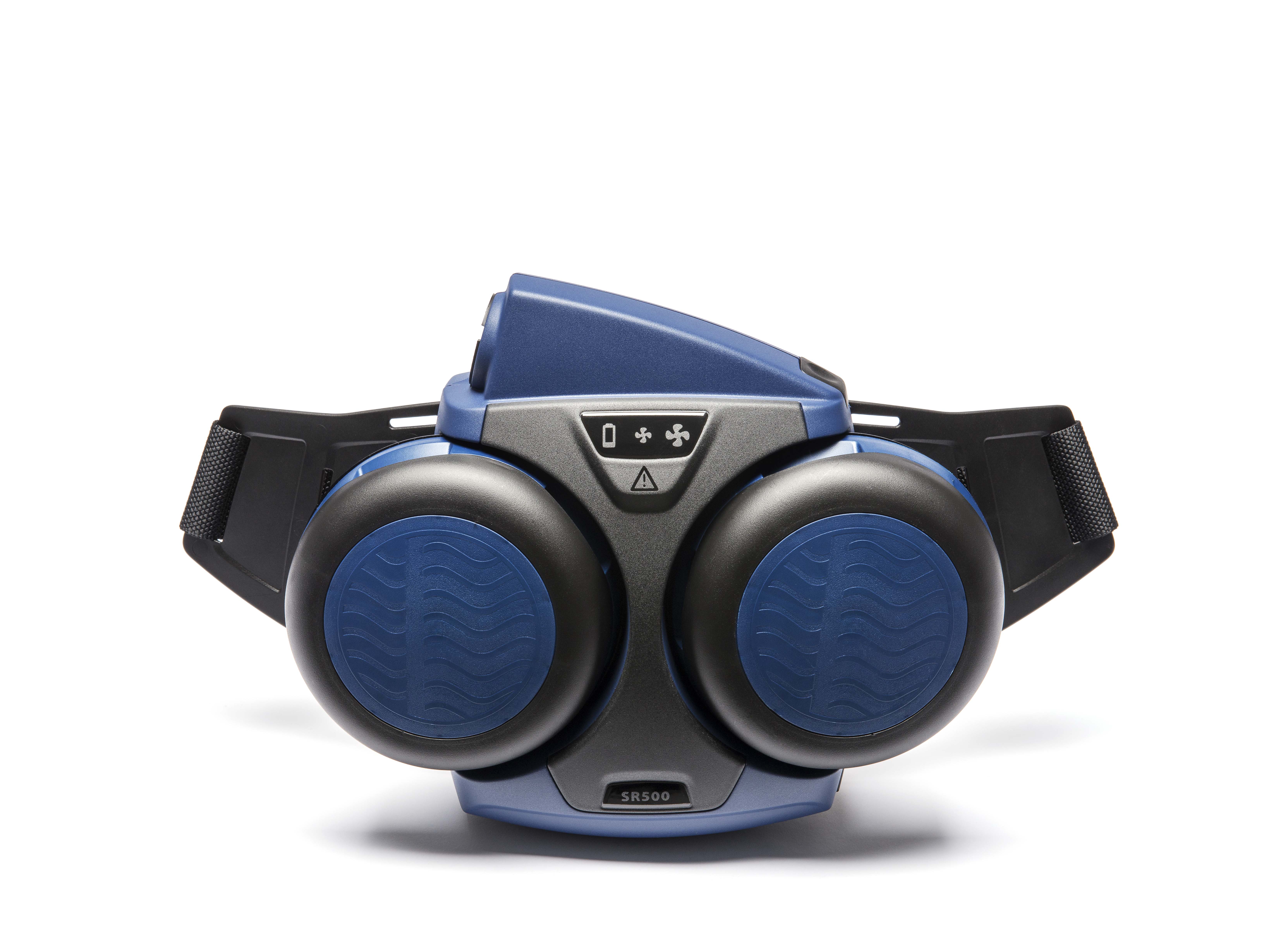

• Description: Battery-powered, fan-assisted air-purifying respirator that can be used as an alternative to negative-pressure filter respirators where these are recommended. This applies particularly to extended periods of hard work in warm conditions. The fan can be used with Sundström hoods, face shields or full face masks. The fan unit is fitted with a suitable filter, and the filtered air is fed through a hose to the facepiece.
• Features
  • Lithium-ion battery
  • Battery available as Standard (STD) or Heavy Duty (HD)
  • Battery recharge time: approximately 1.5 h (STD), 2 h (HD)
  • Supplied with 2 filters/filter combinations
  • Operating time up to 12 h
  • Single control for on, off and operating status
  • Automatic air flow control

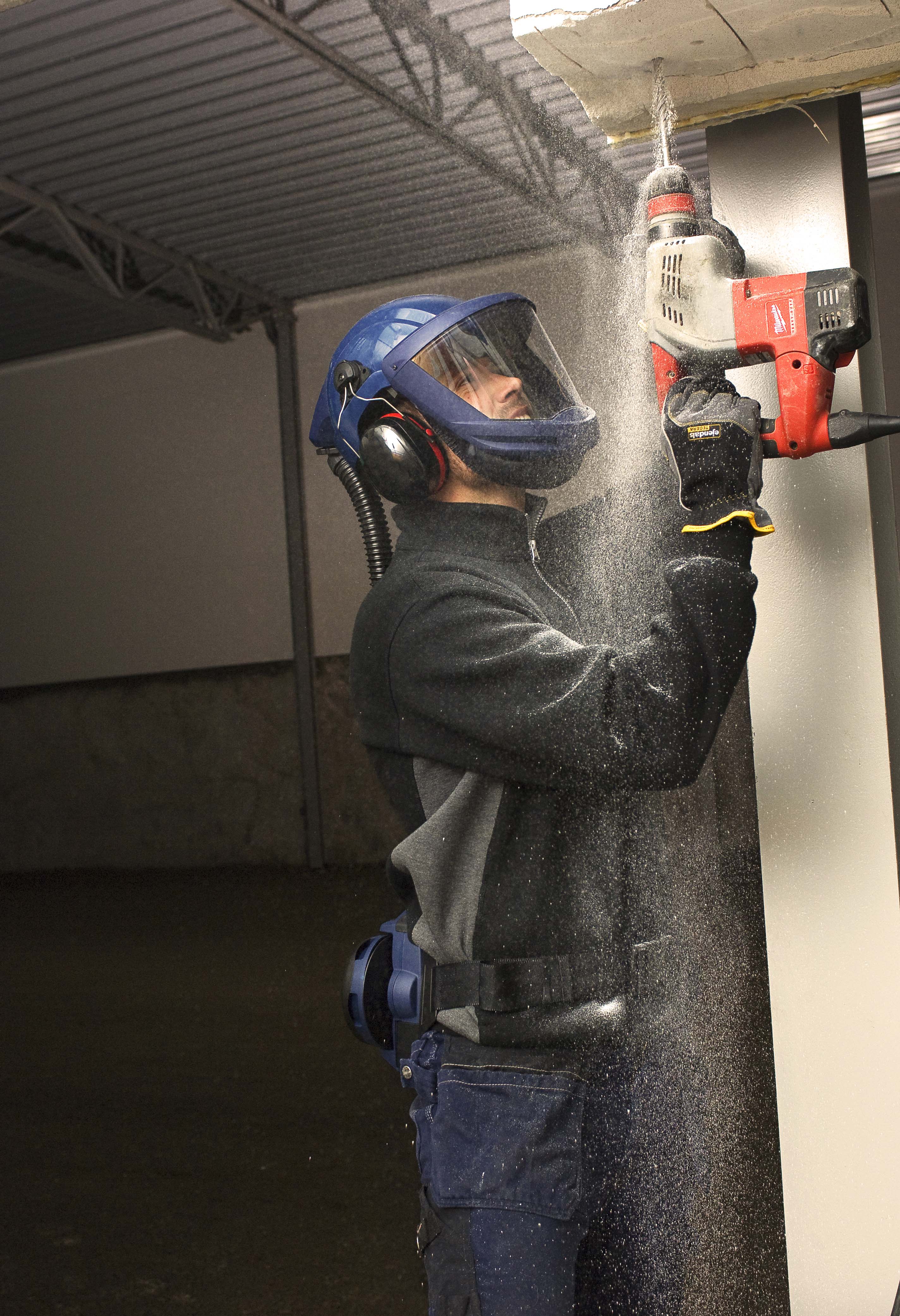

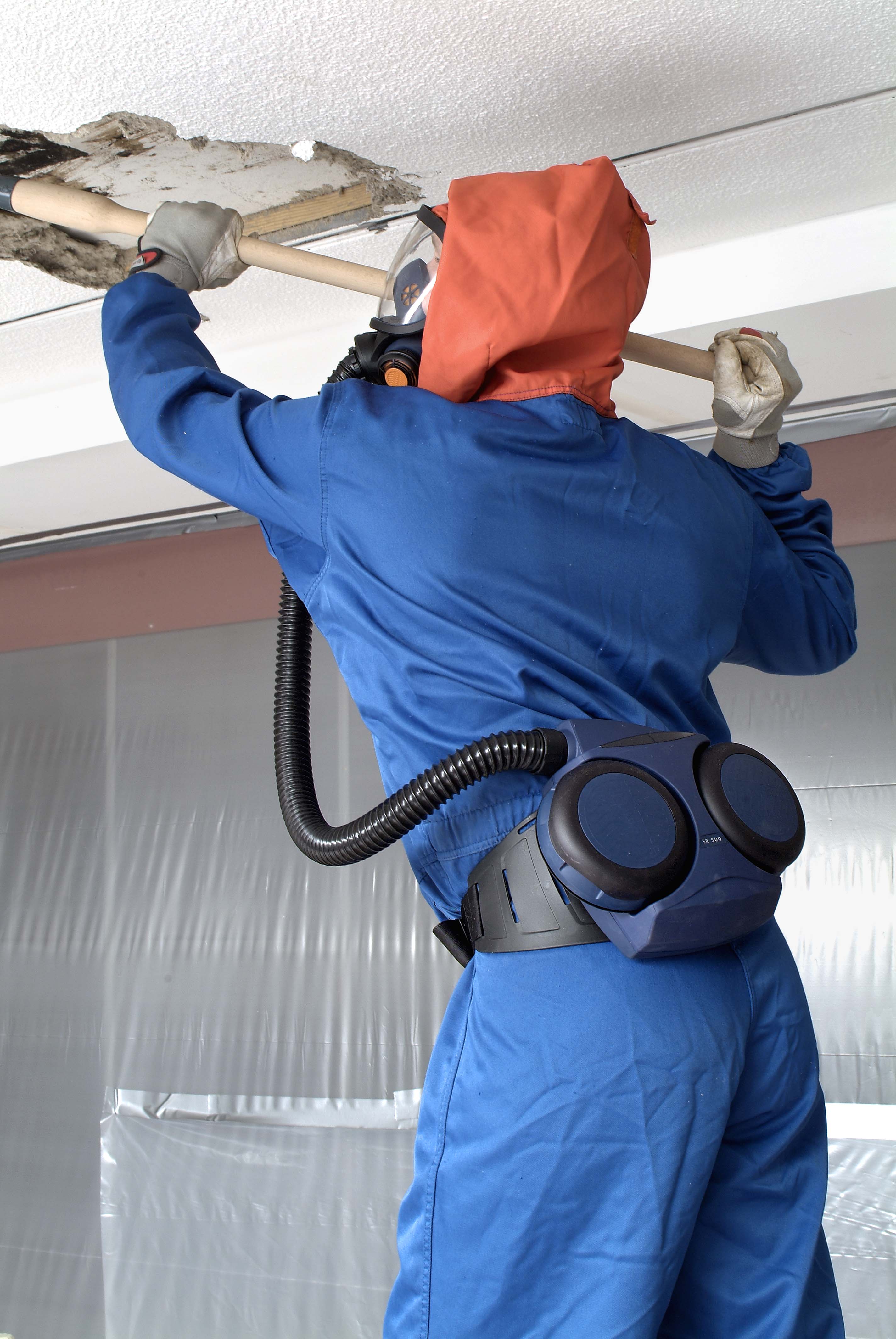

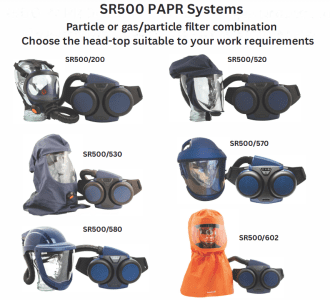

  • Can be used with a variety of Sundström hoods, shields or full face mask
• Visual display
  • Normal operation
  • Boost fan operation
  • Dip in air flow/clogged particle filters
  • Battery low
  • Air flow obstruction
• Air flow rate
  • 175 l/min (normal operation)
  • 240 l/min (boost operation)
• Battery
  • 14.4 V, 2.25 Ah, lithium-ion (STD), energy density* 30.4 Wh (7.6 Wh/cell)
  • 14.4 V, 3.5 Ah, lithium-ion (HD), energy density* 50.88 Wh (12.72 Wh/cell)
  • *) Energy density refers to new generation batteries — available late 2021

• FILTER	NORMAL MODE		BOOST MODE
  	STD Batt	HD Batt	STD Batt	HD Batt
  P3	7h	12h		7h
  A1BE2K1P3	4h	7.5h		4h

• Temperature range
  • Operation: –10°C to +55°C at <90% RH
  • Storage: –20°C to +55°C at <90% RH
• Low flow warning: <175 l/min
• Filter thread: Rd 44 x 1/7″
• Weight: FAN UNIT WITH BELT AND…


  FILTER	STD Batt	HD Batt
  P3	1,490 g	1,680 g
  A2P3	1,960 g	2,150 g
  A1BE2K1P3	2,210 g	2,400 g

• IP rating
  • IP67 (Ingress Protection)
  • Particles: 6 — protected against all dust — ‘dust-tight’
  • Liquids: 7 — protected against immersion for 30 minutes in water to a depth of 1 metre)
