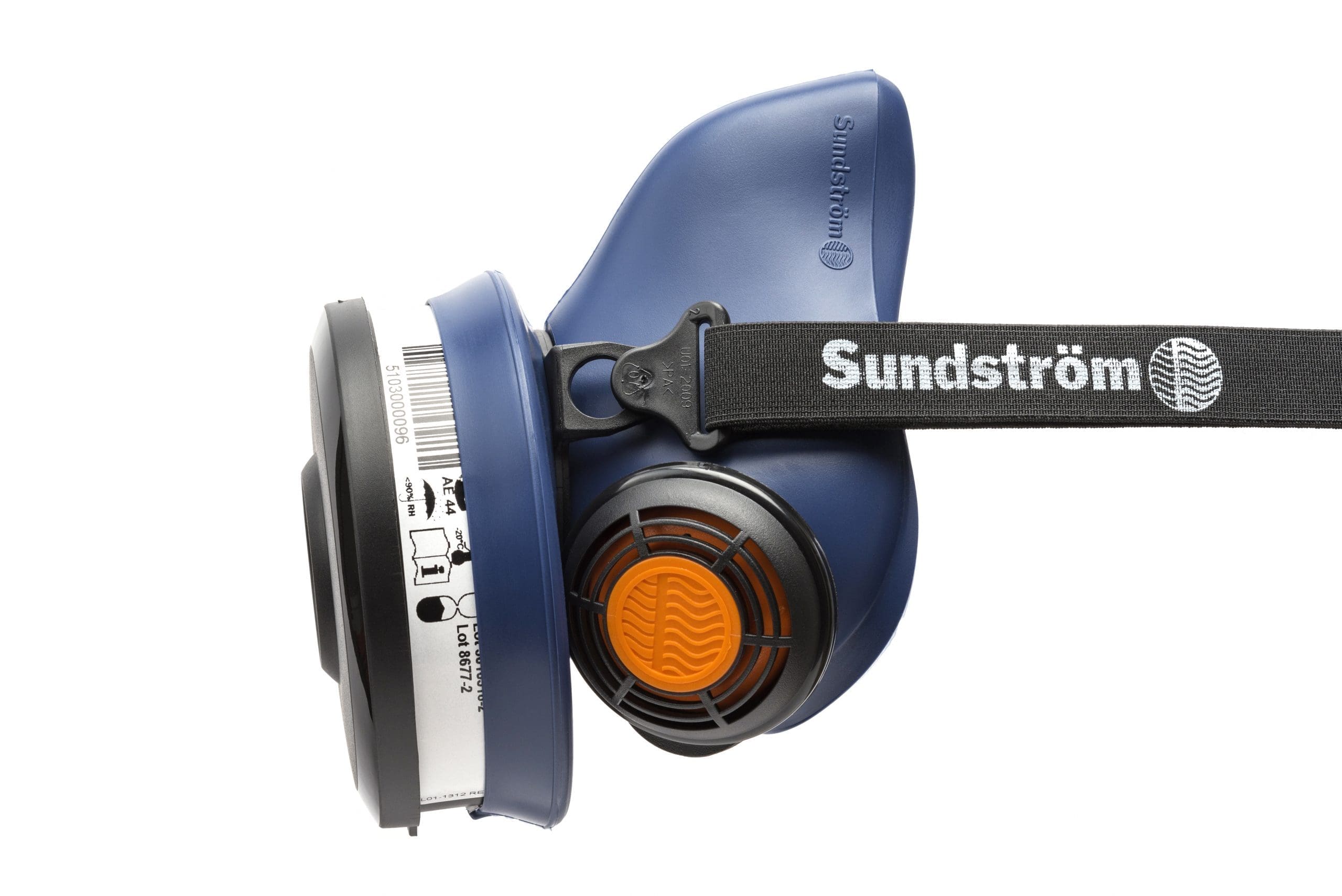

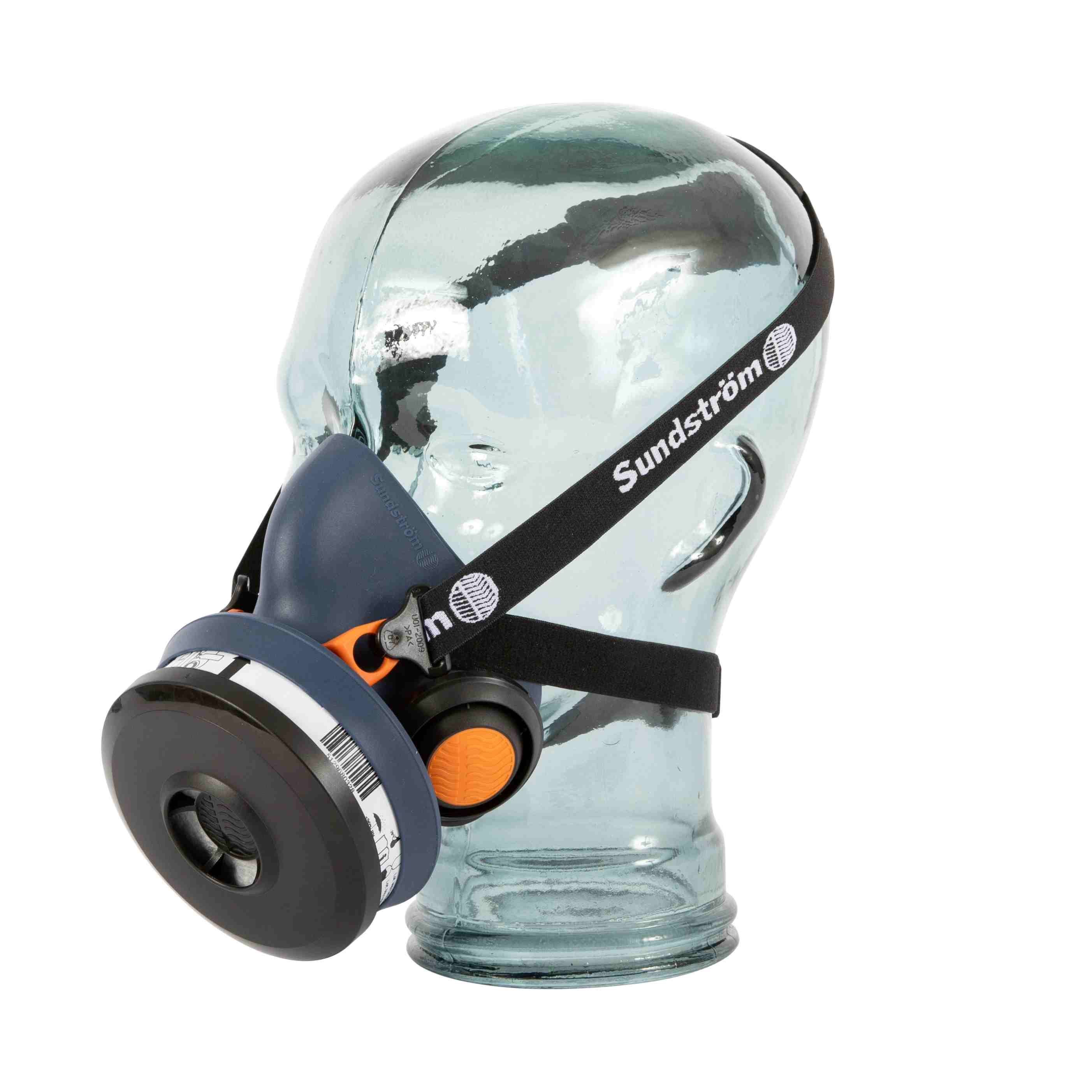

Sundström SR100 half face respirator


Suitable for heavy-duty work during extended periods

Used either as a filtering device in combination with filters from the Sundström range, or in combination with the SR 307 compressed air attachment connected to a supplied-air source.


  • Silicone mask (low allergenic, superior facial seal)
  • Deep chin cup and broad nose rim
  • Two exhalation valves
  • New valve caps with air diffusion (no clogging during spray jobs)

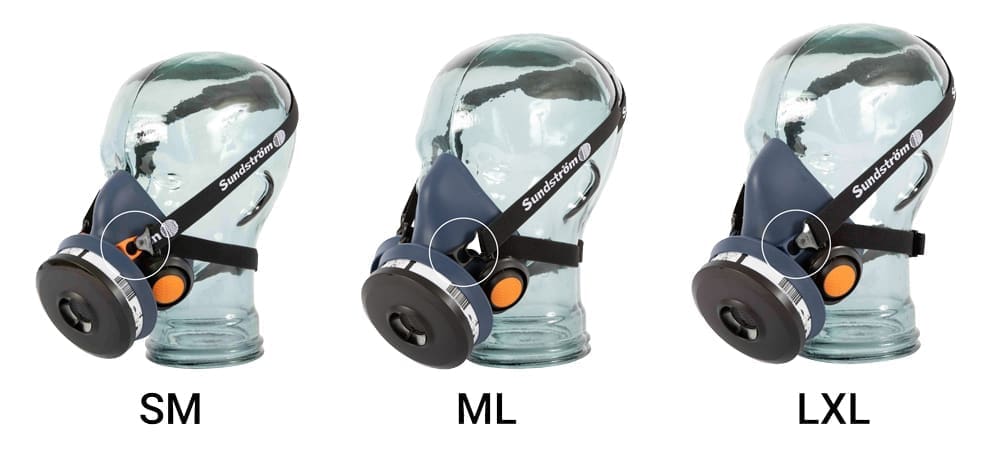

  • Small/Medium, Medium/Large and Large/Extra Large size (XL in black colour)

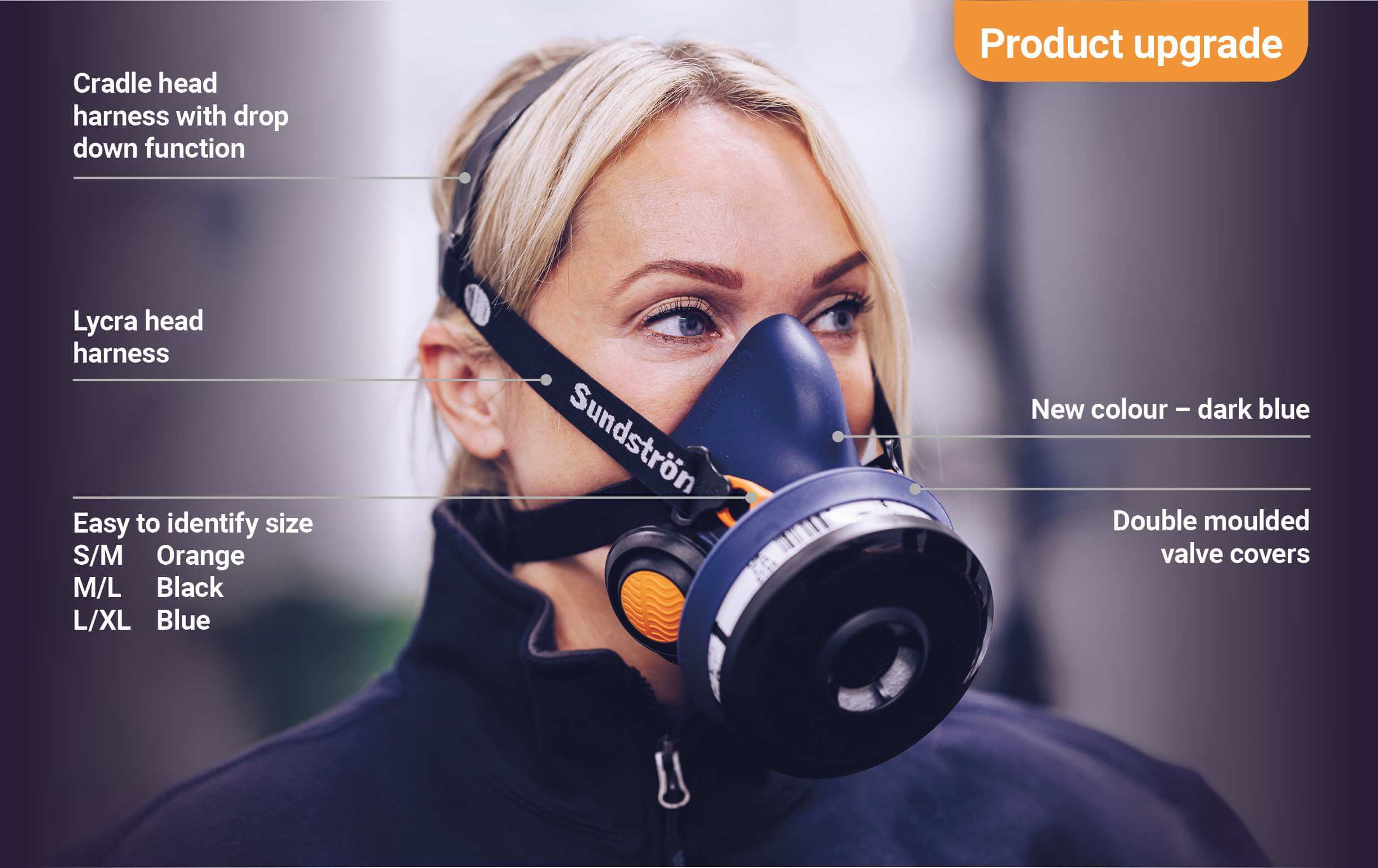

  • Continuous head strap or cradle harness
  • Can easily be fitted with optional SmallTalk microphone and loudspeaker
  • Accepts all Sundström filters and compressed air attachments

Data Sheet

Half face negative-pressure respirator

Download PDF

  • Description: Half mask respirator for use with filters or supplied air
  • Material: Silicone rubber
  • Usage: Heavy-duty use, full-time exposure, long-term work
  • Size
    • Small/Medium
    • Medium/Large
    • Large/Extra large
  • Weight
    • S/M size: 162 g
    • M/L size: 176 g
    • L/XL size: 180 g approx.
  • Membranes
    • Inhalation: Single silicone membrane
    • Exhalation: Twin silicone membranes
  • Head harness: Single strap headband, easy to detach for cleaning
  • Filter attachment: Accepts all Sundström Class I and Class II filters + compressed-air attachment
