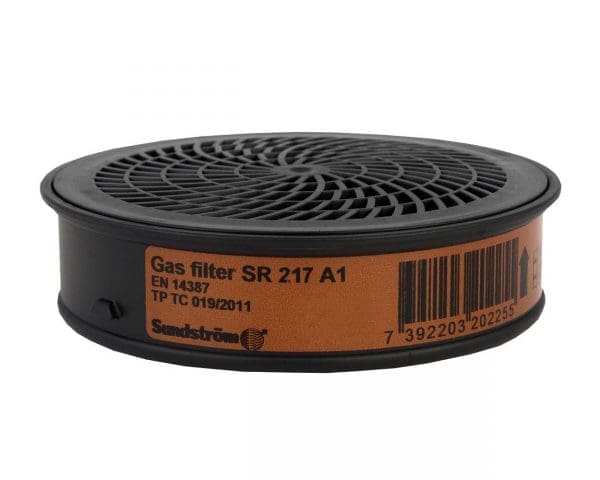

Sundström SR217 Organic gas filter A1

Description

Organic gas filter A1

Organic vapour filter class A1 (regular capacity).

Data Sheet

Organic gas filter A1

Download PDF

  • Material: Plastic polypropylene. No metal parts.
  • Usage: Used against organic gas and vapour with a boiling point above +65°C,such as solvents. The filter fits into the filter attachment of Sundström’s half and full face masks. An SR510 particle filter can be snapped onto the front of the filter.
  • Size
    • Largest diameter: 106 mm
    • Thickness: 28 mm
  • Weight: 113 g
  • Carbon: The filter contains 70 g of activated carbon.
  • Adsorption capacity: In tests with 1,000 ppm carbon tetrachloride at 30 l/min, the filter lasts for 90-110 minutes (standards requirements: >80 min) The filter absorbs approximately 20-25 g carbon tetrachloride (standards requirements: >15.4 g).
  • Pressure drop
    • At 30 l/min: 25-30 Pa (standards requrement: <100 Pa)
    • At 95 l/min: 120-140 Pa (standards requirement: <400 Pa)
  • Storage: Store at room temperature in clean, dry place. If seal has been broken, store away from contaminants in an air-tight container. Shelf life is 5 years if seal is unbroken. Expiry date printed on filter.
