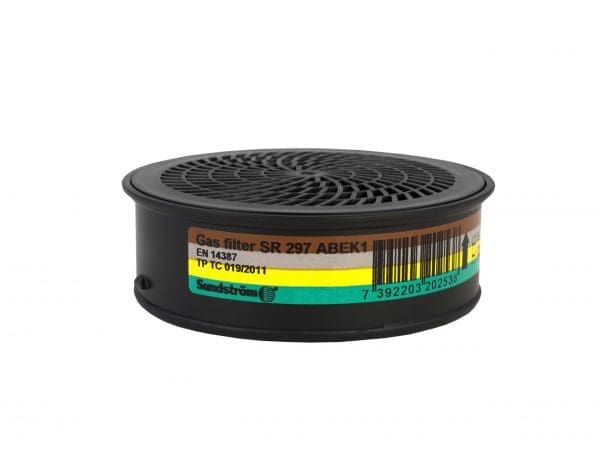

Sundström SR297 ABEK1 gas filter

Data Sheet

Organic + inorganic + acid gas + ammonia filter ABEK1

Download PDF

• Material: Plastic polypropylene. No metal parts.
• Usage: Used against vapour from organic gases whose boiling point exceeds +65°C (150F), for inorganic gas, for acid gas and vapour, and for ammonia.
• Size
  • Largest diameter: 106 mm
  • Thickness: 36 mm
• Weight: 162 g
• Carbon: The filter contains 125 g of activated carbon.


  Adsorption capacity
  Test gas	Conc. (PPM)	B’through (min)
  Carbon tetrachloride	1,000	90–100
  Chlorine	1,000	40–50
  Hydrogen sulphide	1,000	100
  Hydrogen cyanide	1,000	55–60
  Sulphur dioxide	1,000	40
  Ammonia	1,000	60–70

• Pressure drop
  • At 30 l/min: 70–80 Pa (standards requrement: <100 Pa)
  • At 95 l/min: 270–300 Pa (standards requirement: <400 Pa)
• Storage: Store at room temperature in clean, dry place. If seal has been broken, store away from contaminants in an air-tight container. Shelf life is 5 years if seal is unbroken. Expiry date printed on filter.
