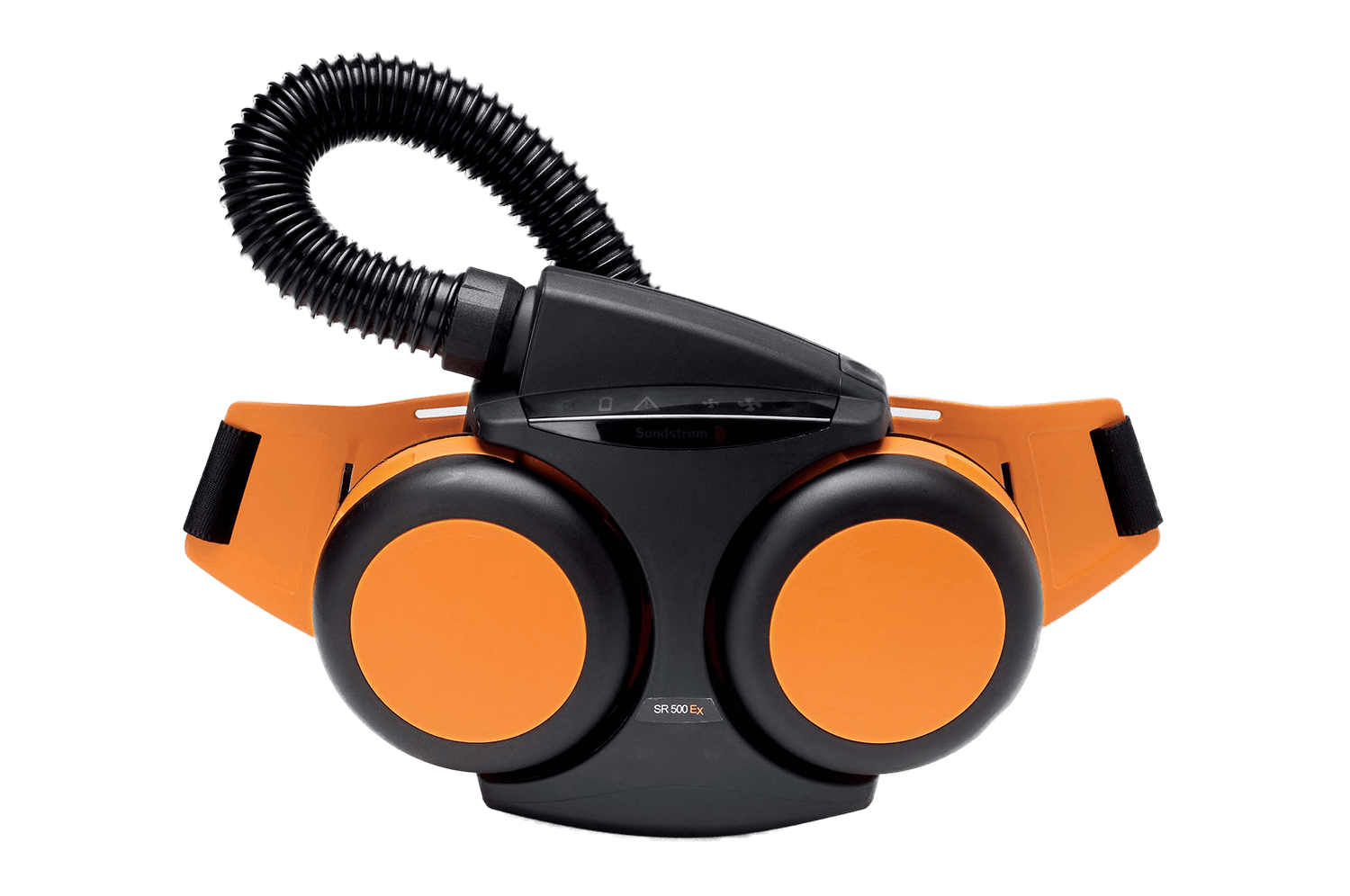

Sundström SR500ex PAPR

Sundström SR500ex PAPR

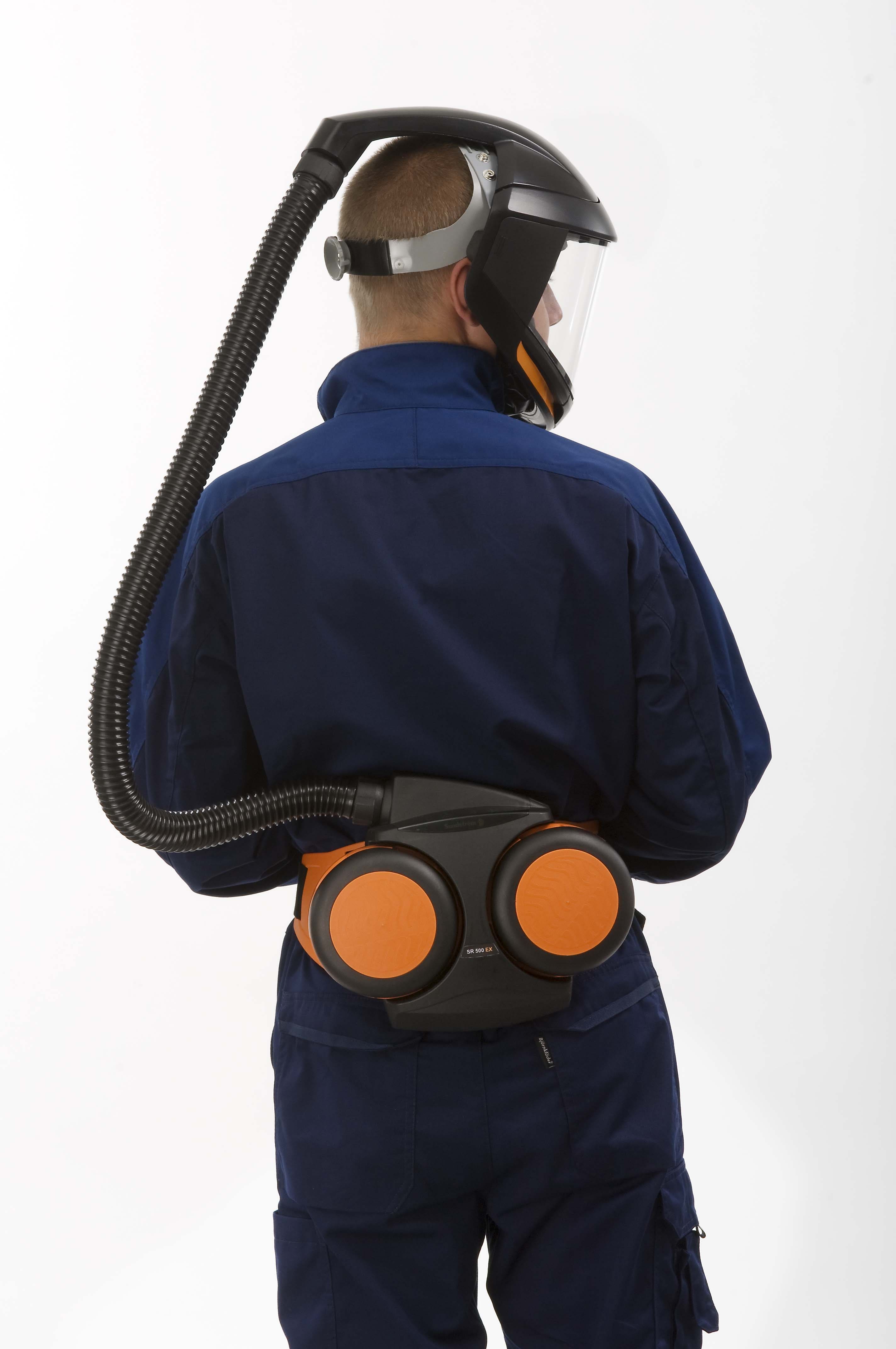

Sundström SR500ex PAPR - Image 2

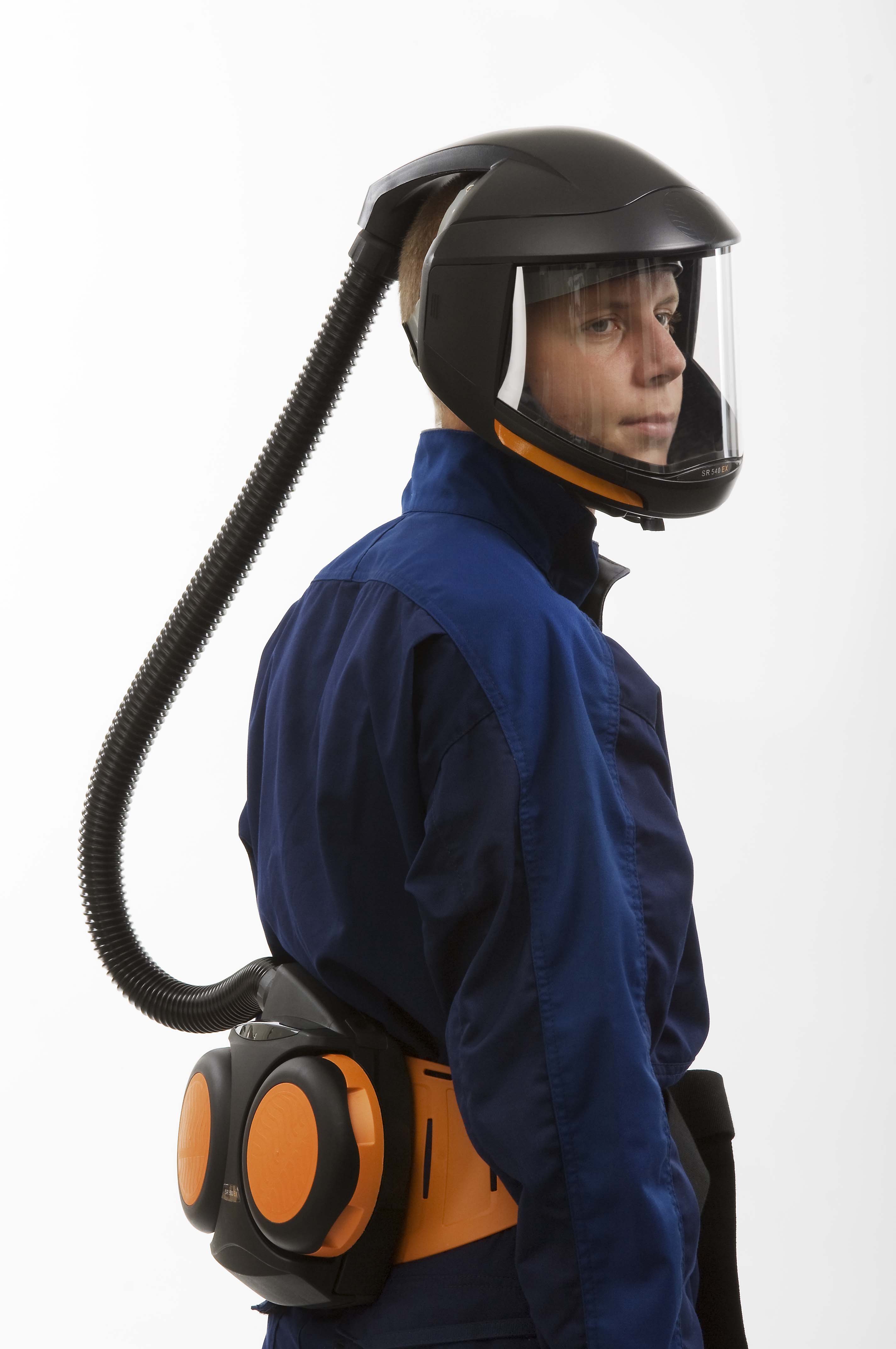

Sundström SR500ex PAPR - Image 3

Description

Intrinsically safe

For work in many ignitable or explosive atmospheres

The intrinsically safe Sundström SR500ex powered air purifying respirator designed and approved for use in explosive or ignitable atmospheres. It is an alternative to negative-pressure filter respirators in situations where these are recommended. The fan-assisted air flow may be of benefit during extended periods of work in warm conditions. The fan can be used with most Sundström hoods, face shields or full face masks. It is important to understand that the entire SR500ex system and its individual parts have been certified as intrinsically safe.

 New Lithium-ion Battery and charger now available.

Features

  • Intrinsically safe
  • Single-button operation
  • Visible and audible alarms in case of interrupted air delivery
  • NiMh battery: Up to 6.5 hours’ operation, Approximately 2 hours’ recharge time
  • Lithium-Ion battery: Up to 12 hours’ operation, Approximately 2 hours’ recharge time to 80%
  • Supplied with 2 filters/cartridges/combinations
  • Can be used with hoods SR520, SR530, SR561, SR562, SR601, SR602, Face Shield SR540 EX (discontinued) SR570, Helmet with Visor SR575, SR580 and full-face mask SR200

Data Sheet

Intrinsically safe PAPR

Download PDF

  • Description: Intrinsically safe (i.e. for use in explosive or ignitable atmospheres) battery-powered, fan-assisted air-purifying respirator that can be used as an alternative to negative-pressure filter respirators where these are recommended. This applies particularly to extended periods of hard work in warm conditions. The fan can be used with certain Sundström hoods, face shields or full face masks. The fan unit is fitted with a suitable filter, and the filtered air is fed through a hose to the facepiece.
  • Visual display:
    • Normal operation
    • Boost fan operation
    • Dip in air flow/clogged particle filters
    • Battery low
    • Air flow obstruction
  • Air flow rate
    • 175 l/min (normal operation)
    • 225 l/min (boost operation)
  • Battery:
    • 13.5 V, 2.1 Ah, NiMh, energy density 28 Wh (2.8 Wh/cell)
    • 18 V, 3.0 Ah, Lithium-Ion, energy density 54 Wh (10.8 Wh/cell)
  • Operating time
    • NiMh battery:
      Normal mode: 6.5 h with P3 filter
      Boost mode: 4 h with P3 filter
    • Lithium-Ion battery:
      Normal mode: 12 h with P3 filter
      Boost mode: 7 h with P3 filter
  • Temperature range
    • Operation: –10°C to +40°C at <90% RH
    • Storage: –20°C to +40°C at <90% RH
  • Low flow warning: <175 l/min
  • Filter thread: Rd 44 x 1/7″
  • Weight:
    • With NiMh battery and P3 particle filter: 1,840 g
    • With Lithium-Ion battery and P3 particle filter: 1,780 g
  • Protection factors
    • Assigned Protection Factor
      w- Hoods, SR540 EX, SR570, SR575, SR580     40 (TH3)
      w- SR200                                                                    40 (TM3)
    • Nominal Protection Factor
      w- Hoods, SR540 EX, SR570, SR575, SR580     500 (TH3)
      w- SR200                                                                    2000 (TM3)
  • Intrinsically safe classification
    (The IECEx symbol for explosion risk)

    • II 2 G Ex ib IIA T3 (with SR540 EX face shield, SR580 Helmet or SR200 full face mask)
    • II 2 G Ex ib IIB T3 (SR520, SR530, SR561, SR562, SR601, SR602, face shield SR570 or
      full face mask SR 200 with glass visor)
