Data Sheet

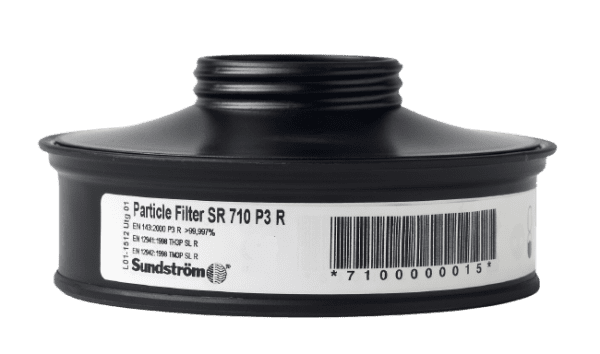

Particle filter — threaded

Download PDF

• Material: Plastic polypropylene. No metal parts.
• Usage: Used against all types of wet and dry particles, such as dust, smoke, aerosols, spray, asbestos, bacteria, viruses and mould.
• Size
  • Largest diameter: 108 mm
  • Thickness: 48 mm
• Weight: 70 g
• Thread: 44 x 1/7”
• Filtration paper: Particle filter contains about 1,300 sq cm (200 sq inches) hydrophobic fibreglass paper.
• Filtration efficiency: Paraffin oil aerosol: >99.997% (tested by INSPEC).
• Pressure drop
  • At 30 l/min: 40 Pa (standards requrement: <120 Pa)
  • At 95 l/min: 120 Pa (standards requirement: <420 Pa)
• Temperature range
  • Storage: –20°C to +40°C at <90% RH
  • Use: –10°C to +55°C at <90% RH
• Storage: Store at room temperature in clean, dry place. If seal has been broken, store away from contaminants in an air-tight container. Shelf life is 10 years if seal is unbroken.
