Data Sheet

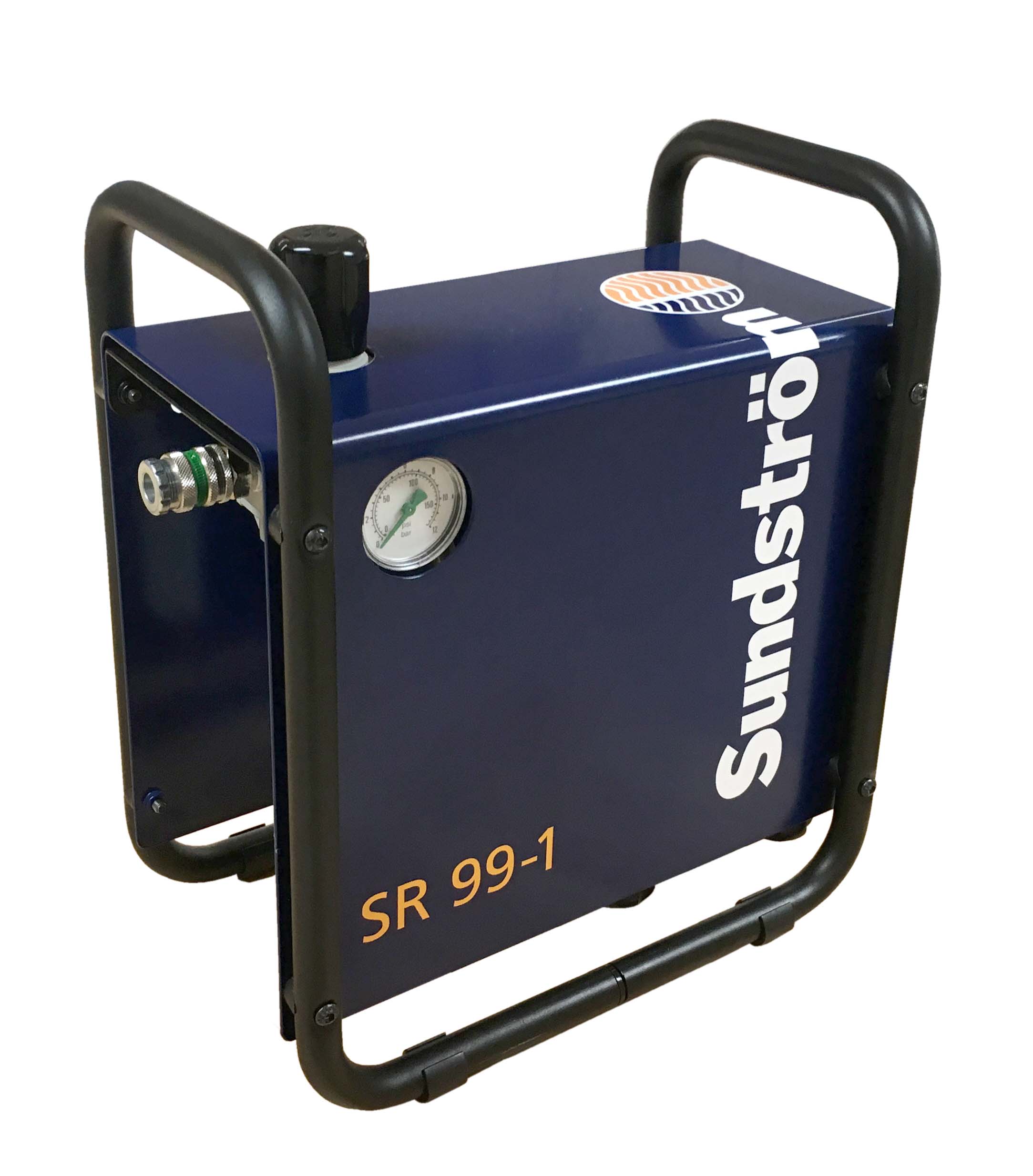

Supplied airline filter

Download PDF

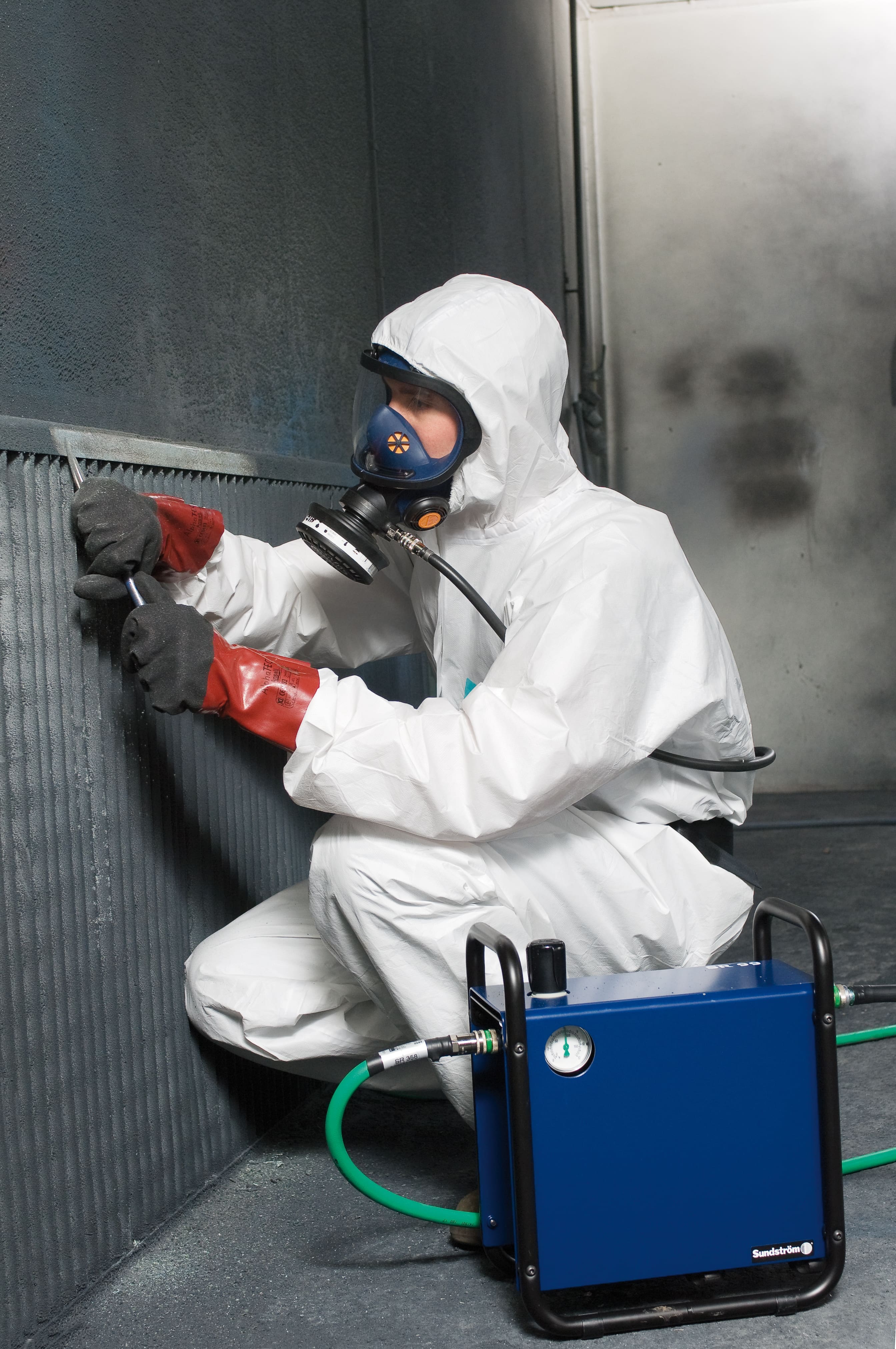

• Description: Compressed air filter used to clean ordinary compressed air for safe breathing. Also suitable for cleaning air supply to pneumatic tools and instruments that require pure air.
• Function:
  • Stage 1: Coarse particles (oil, water, dirt) are filtered out in the pre-filter, which has a pressure-controlled/manual drain.
  • Stage 2: Air moves through the main filter (replaceable SR 292 filter).
  • Stage 3: Main filter removes microscopic particles and oil odours.
  • Stage 4: Air moves through a secondary P3 particle filter.
• Working pressure: 6 to 10 bar
• Air flow: Up to 900 l/min (3 users or air tools)
• Filter: SR 292 filter, incorporating two particle (P3) filters — one on either side of an organic gas (A3) filter.
  • Filter area of P3 filters: 2,200 cm2 approx.
  • Activated carbon: approx. 500 grams
  • Adsorption capacity: 100–150 g oil
• Inlet: ½” BSP female
• Outlets: ½” BSP female. One safety coupling; one plugged opening. An additional Y coupling that doubles the number of outlets is available as an accessory. Supplied with 1 x CEJN series coupling.
