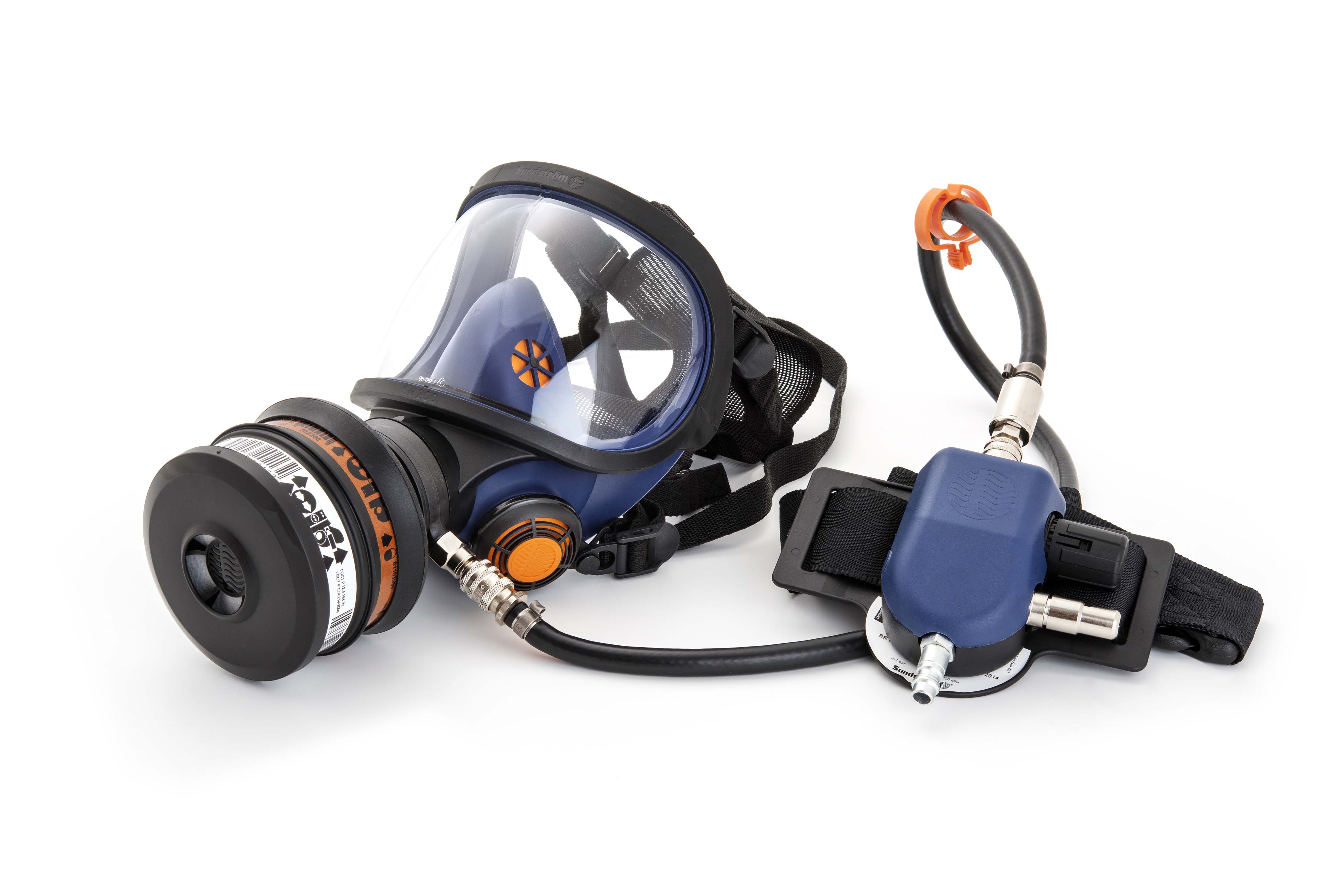

Sundström SR200A full face respirator with supplied-air connection


Silicone facepiece

Heavy duty use, full time exposure, long term work with supplied air in areas requiring very high protection levels

The Sundström SR200A full face respirator provides very high protection at heavy-duty work for extended periods. Use with a supplied-air system through a regulator.


  • Very high protection factor
  • Two exhalation valves
  • Valve caps with air diffusion (no clogging during spray jobs)
  • Low weight
  • Fabric head harness – no sticking rubber
  • Unique curved visor for exceptionally wide and deep field of vision
  • Part of inhalation air is channelled across the visor to minimise mist forming
  • Can easily be fitted with optional SmallTalk microphone and loudspeaker
  • Control valve, flow meter, warning whistle included

Data Sheet

Full face respirator with permanent supplied-air connection

Download PDF

  • Description: Full face respirator for use with a fixed supplied air system
  • Material: Silicone rubber
  • Usage: Heavy-duty use, full-time exposure, long-term work in areas requiring very high protection levels
  • Air circulation inside mask:
    2/3 of inhalation air reaches mouth and nose without circulating visor and outer mask
    1/3 of inhalation air passes across the visor and prevents fogging
  • Weight: 750 g approx. without control valve
  • Exhalation membranes: Twin silicone membranes. The position and construction of the two exhalation membranes make voice communication easy
  • Head harness: Elastic bands and a mesh head cradle for optimum comfort. The harness has to be adjusted only oncce for a user, after which the mask can be put on in a simple two-hand movement
  • Low flow warning: <150 litres/minute
  • Assigned protection factor: 100 (4A, 4B)
  • Nominal protection factor: 2,000 (4A, 4B)
  • Visor: Scratch-resistant polycarbonate (standard). The visor is curved spherically, which means that the face fits ‘into’ the visor, ensuring a very wide field of vision and a minimum of reflections
