Sundström SR507 supplied-air regulator

Description

Air for hoods and shields

Lots of connections

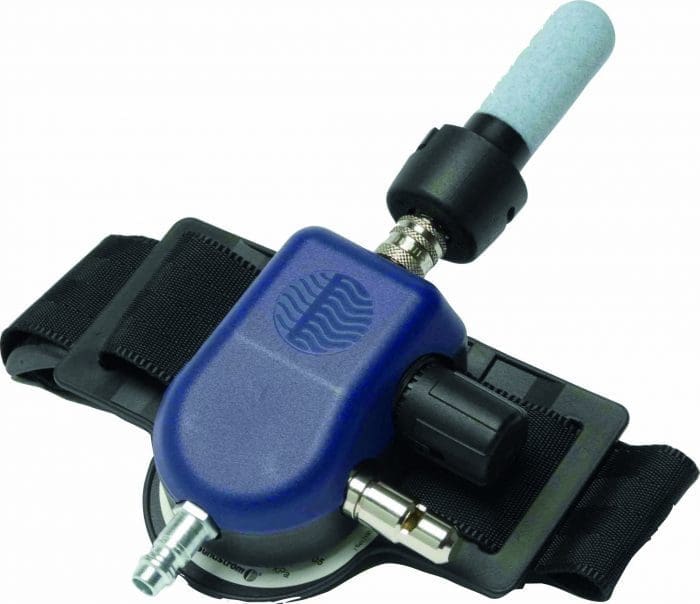

The SR 507 supplied air attachment is designed for connection to Sundström hoods, visors and helmets. It can also be used with SR200 full face mask. This means that the Sundström head-tops can be used with continuous-flow supplied air. The SR 507 is made of materials which are not liable to give rise to friction sparking, which enables the attachment to be used in an explosive or flammable environment. The flow meter and warning whistle for temporary and continuous monitoring of the air flow rate are included. Control valve mounted on the user’s belt is included.

Features

  • Belt mounted
  • Extra outlet for air tool
  • Use with Sundström hoods, visors, shields, helmets and full mask
  • Warning whistle if air supply drops

Data Sheet

Supplied-air regulator

Download PDF

  • Description: Supplied airline regulator for use between an external air supply (e.g. compressor or cylinder) and a suitable Sundström respirator, hood, shield or helmet
  • Material: Resistant to chemicals, non-spark material
  • Working pressure: 5 to 7 bar
  • Air flow: 175 to 260 l/min
  • Temperature range:
    • Operation: –10°C to +55°C at <90% RH
    • Storage: –20°C to +40°C at <90% RH
  • Weight
    • 60 g approx. without control valve
    • 560 g approx. with control valve and belt

Low flow warning: <175 l/min

Downloads

Approvals

Instruction manual

Data Sheet

Operating Instructions
